Introducing our 6*3200 Hydraulic Swing Beam Shearing Machine, now available for only $8,500!
Cnc shearing machine is built with a sturdy welded steel frame and vibration stress-relief processing, this machine offers exceptional stability and precision for high-intensity, long-duration work. The hydraulic drive system ensures smooth and efficient cutting, with an adjustable upper beam stroke for precise cuts based on material thickness.
The shearing machine is equipped with a digital display for real-time monitoring of the back gauge position and cut count, the machine also features quick blade gap adjustments and a light alignment system for accurate cuts.
Safety features include protective grilles and an electrical interlock for operator safety, along with a front pressure gauge to monitor working pressure.
Simple to operate with an easy-to-use control panel, this shearing machine offers both efficiency and reliability at an unbeatable price!
パラメーター
| モデル | Cutting thickness (mm) | Cutting length (mm) | Cutting Angel (°) | Stopper Adjust Range (mm) | Stroke time (min-1) | Motor (KW) | Dimension(mm) | Weight (t) |
| QC12Y-4X2500 | 4 | 2500 | 1.5 | 500 | 18 | 7.5 | 2900x1500x1580 | 3.1 |
| QC12Y-4X3200 | 4 | 3200 | 1.5 | 500 | 14 | 7.5 | 3580x1500x1580 | 5.2 |
| QC12Y-4X4000 | 4 | 4000 | 1.5 | 500 | 12 | 7.5 | 4480x1500x1580 | 6.7 |
| QC12Y-6X2500 | 6 | 2500 | 1.5 | 500 | 18 | 7.5 | 2990x1650x1620 | 4.6 |
| QC12Y-6X3200 | 6 | 3200 | 1.5 | 500 | 14 | 7.5 | 3690x1650x1620 | 5.9 |
| QC12Y-6X4000 | 6 | 4000 | 1.5 | 500 | 12 | 7.5 | 4480x1850x1700 | 7.7 |
| QC12Y-6X6000 | 6 | 6000 | 1.5 | 500 | 12 | 11 | 6480x2000x2000 | 15.0 |
| QC12Y-8X2500 | 8 | 2500 | 1.5 | 500 | 18 | 11 | 2990x1700x1700 | 5.0 |
| QC12Y-8X3200 | 8 | 3200 | 1.5 | 500 | 14 | 11 | 3690x1700x1700 | 6.0 |
標準装備
E21s NC control System
Main Motor Siemens Germany brand
Pump First USA brand
Hydraulic Valve BOSCH-REXROTH Germany brand
Ball Screw&Linear guide Hiwin Taiwan brand
Foot pedal Pizzato Italy brand
Electrical Schneider France brand
Schneider PLC with Inverter
制御システム
*Back gauge(X axis) movement control
*Control AC motor or inverter
*Intelligent and unilateral positioning
*Language for Chinese/English
*切削角度調整
*7″ monochrome LCD Touch screen
*Numerical programming
*RF-link wireless radio frequency data communication allow backup and restoring operations
*Angle and back gauge correction.
詳細

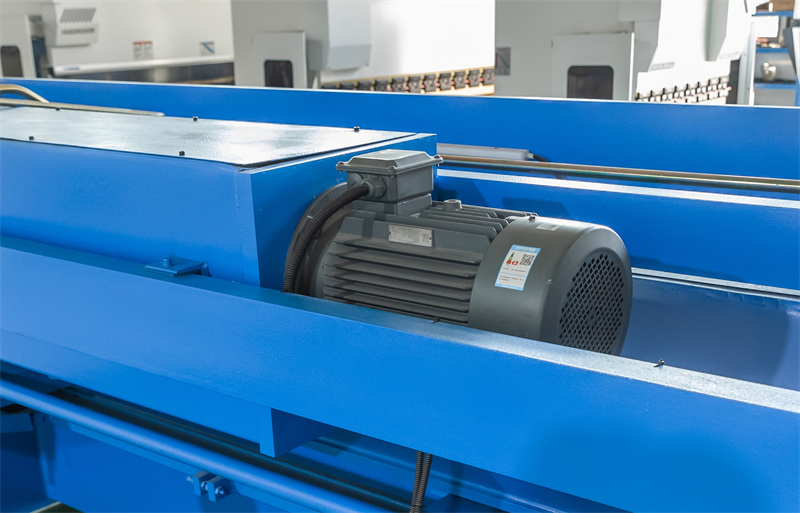

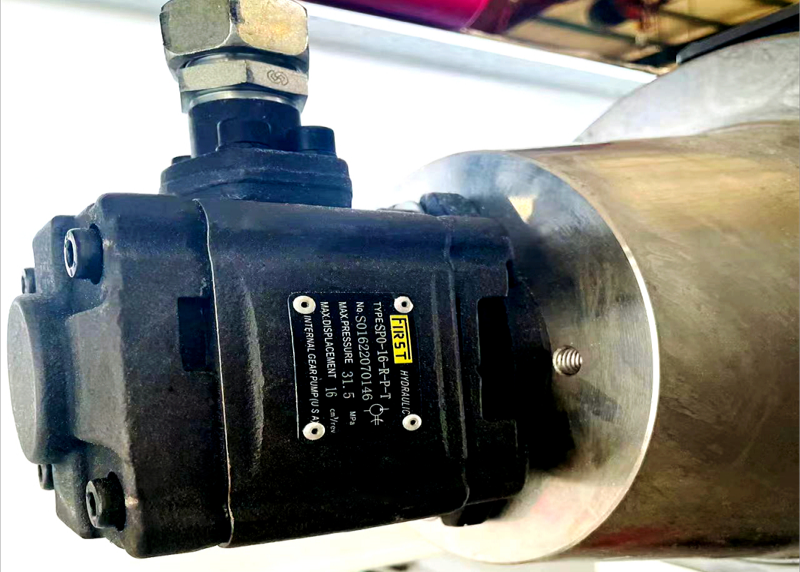

SIEMENS Motor Oil Pump

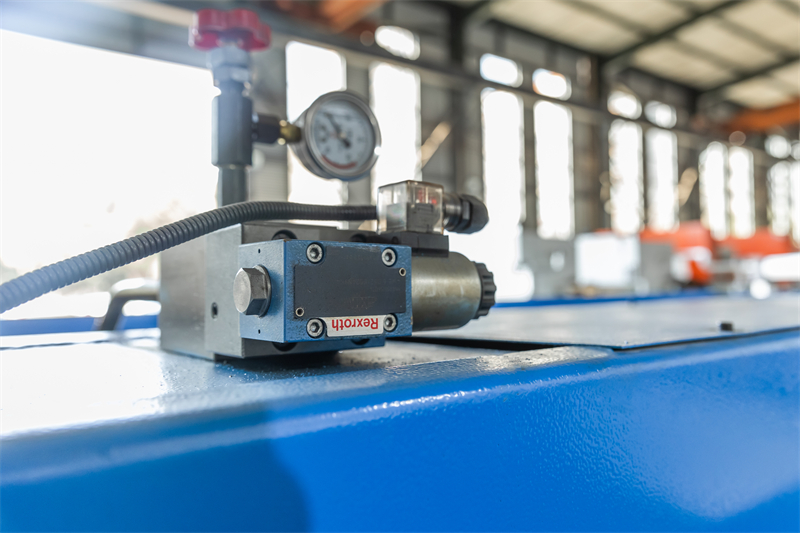

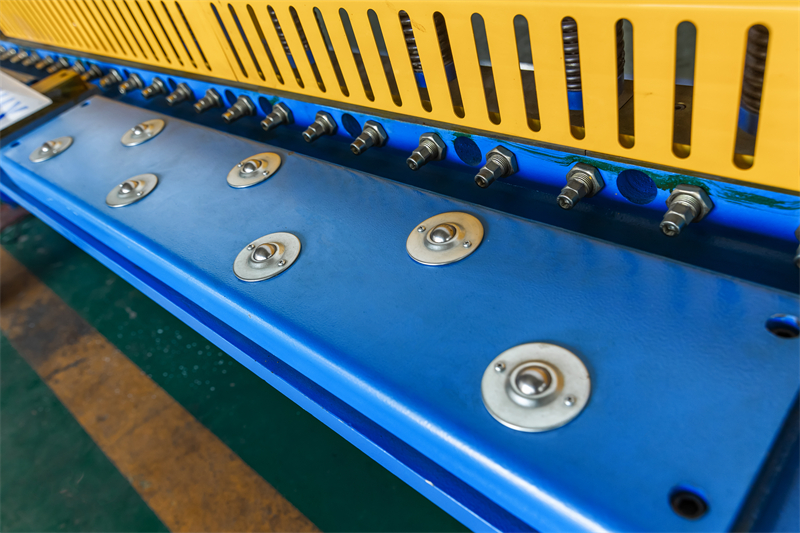

Bosch Rexroth Hydraulic System Workbench

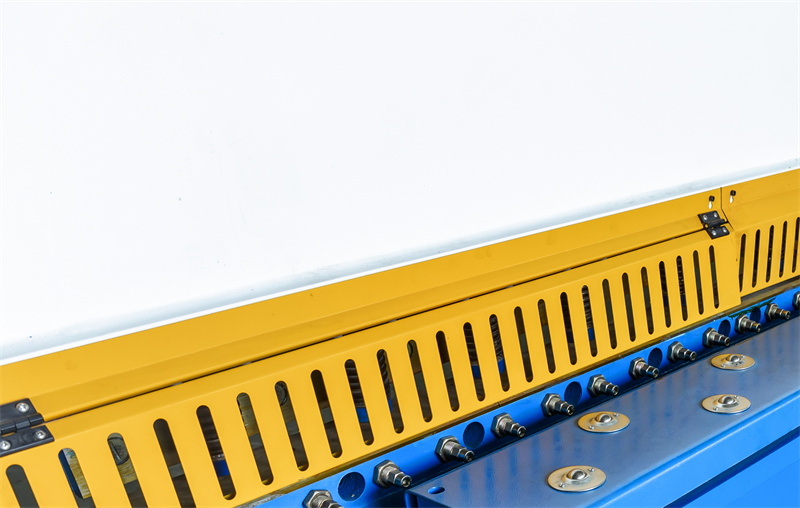

Safety Fence Germany EMB Casing Tube

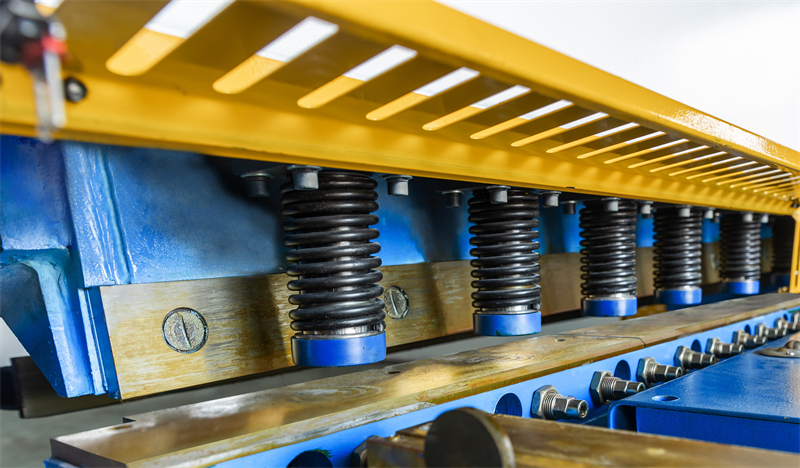

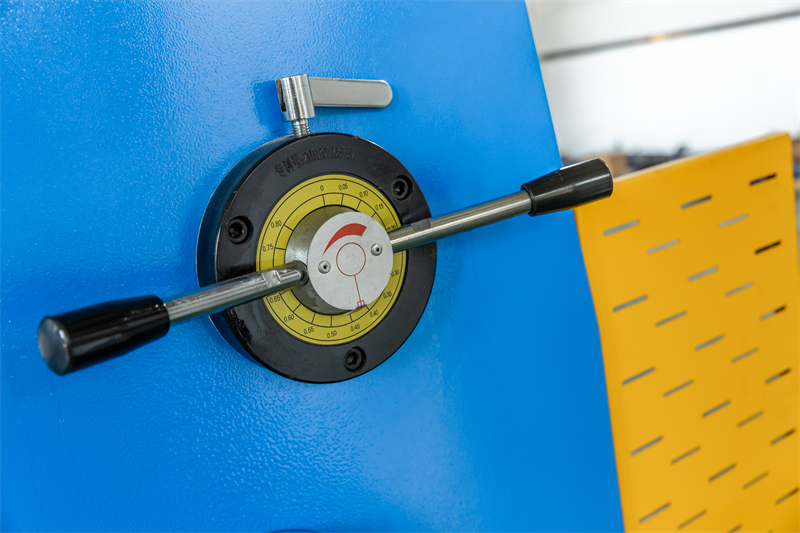

Pressing Mechanism Blade Clearance Adjustment

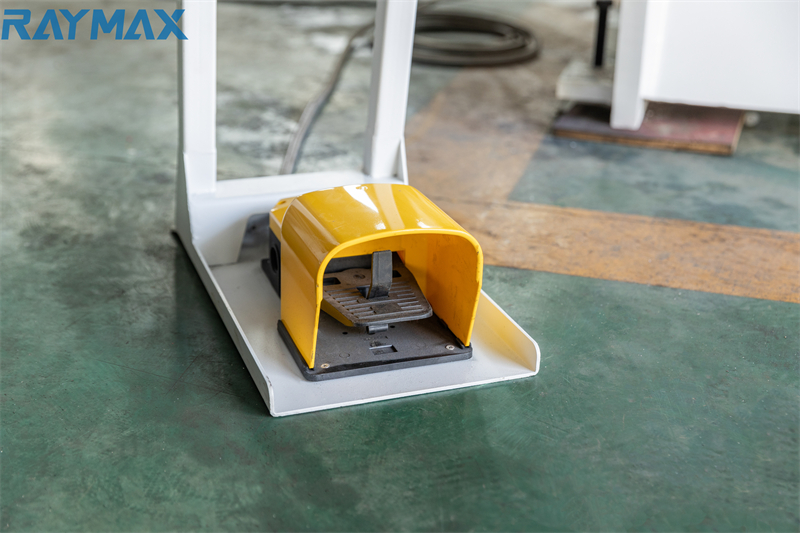

HIWIN Ball Screw & Linear Guide Pedal Switch
Optional Configuration
応用
